Shot blasting cabinets are designed for precision surface preparation — ideal for cleaning, texturing, and finishing metals, plastics, and other materials.
Use these systems for:
-
Removing rust, scale, paint, or coatings
-
Preparing surfaces for painting or coating
-
Texturing or polishing metal and plastic parts
-
Cleaning castings, tools, and fabricated components
We off a wide range, including bench-top, floor-standing, and automated blasting systems, suitable for both small workshops and industrial production.
What is Shot Blasting?
Shot blasting propels small metal or mineral particles (shot) at high speed to clean or texture a surface.
It removes contaminants, rust, and coatings — leaving the surface ready for painting, bonding, or further processing.
Commonly used in:
-
Automotive and aerospace manufacturing
-
Fabrication and engineering workshops
-
Casting and machining operations
Using a closed blasting cabinet ensures operator safety, clean working conditions, and efficient media recovery.
Variations & Technical Specs

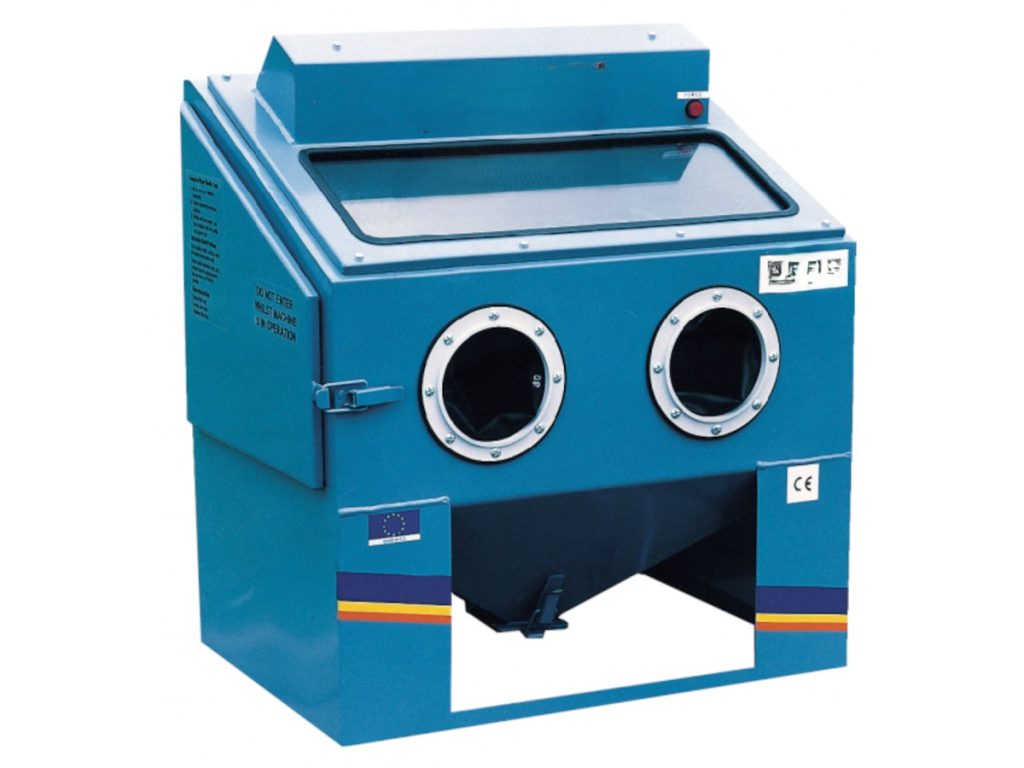

Fox 10 - Compact Bench-Top Unit
Ideal for hobbyists, laboratories, or R&D environments, the Fox 10 is a portable dry blast cabinet combining performance and practicality in a compact footprint.
Operates on a single-phase 220/240 V supply and requires a portable dust collector (sold separately).
Key Features
-
Tungsten carbide nozzle with hand trigger control
-
Fast media change system
-
Powder-coated steel construction
-
Two side doors for easy access
-
Fluorescent lighting and large viewing window with acetate protection
-
Media filtration to prevent blockages
-
Fitted with rubber gauntlets
Best for: Light-duty blasting, laboratory use, research applications, and small component finishing.
Dimensions: H 820 mm × W 770 mm × D 540 mm

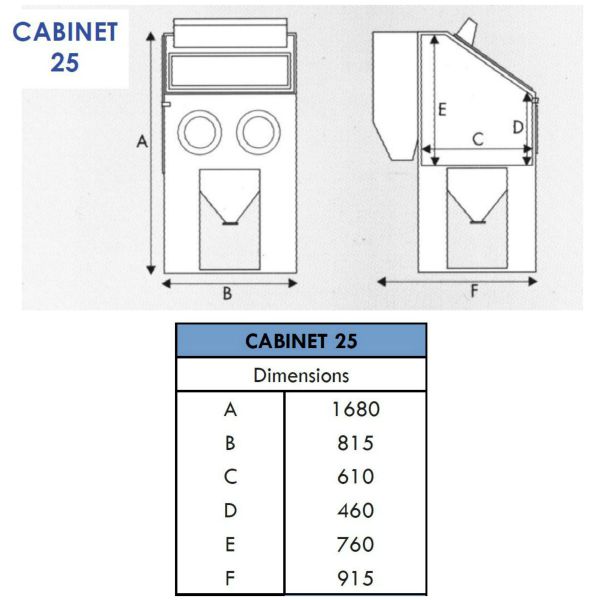

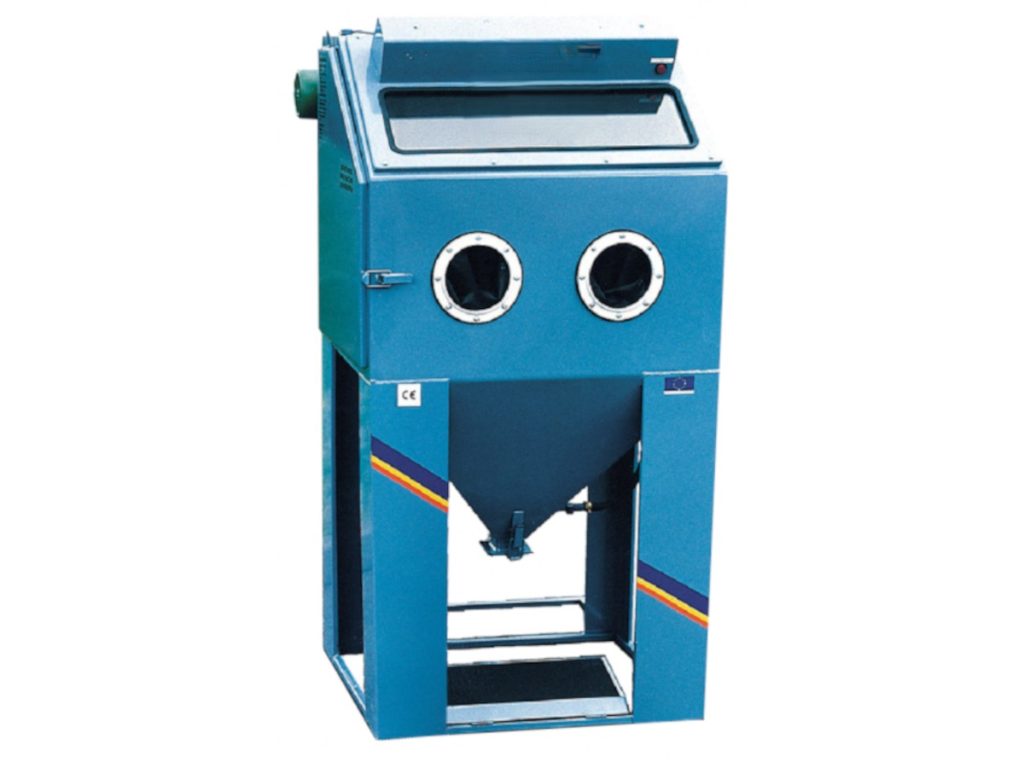

Fox 25 - Medium Floor-Standing Cabinet
The Fox 25 is the next step up — a highly efficient dry blast cleaning cabinet with integral high-performance extraction and foot pedal control for operator comfort.
It offers superb visibility through its large window, illuminated by fluorescent lighting, and supports optional turntables for easier handling of components.
Key Features
-
Tungsten carbide nozzle
-
Foot pedal operation
-
Integral multi-pocket filter extraction system
-
Fast media change
-
Easy pressure-conversion option (minipot compatible)
-
Large side door for loading
-
Powder-coated finish with rubber gauntlets
-
Single-phase 220/240 V supply
Best for: Workshops, engineering firms, and small-to-medium production lines.
Dimensions: H 1680 mm × W 815 mm × D 915 mm

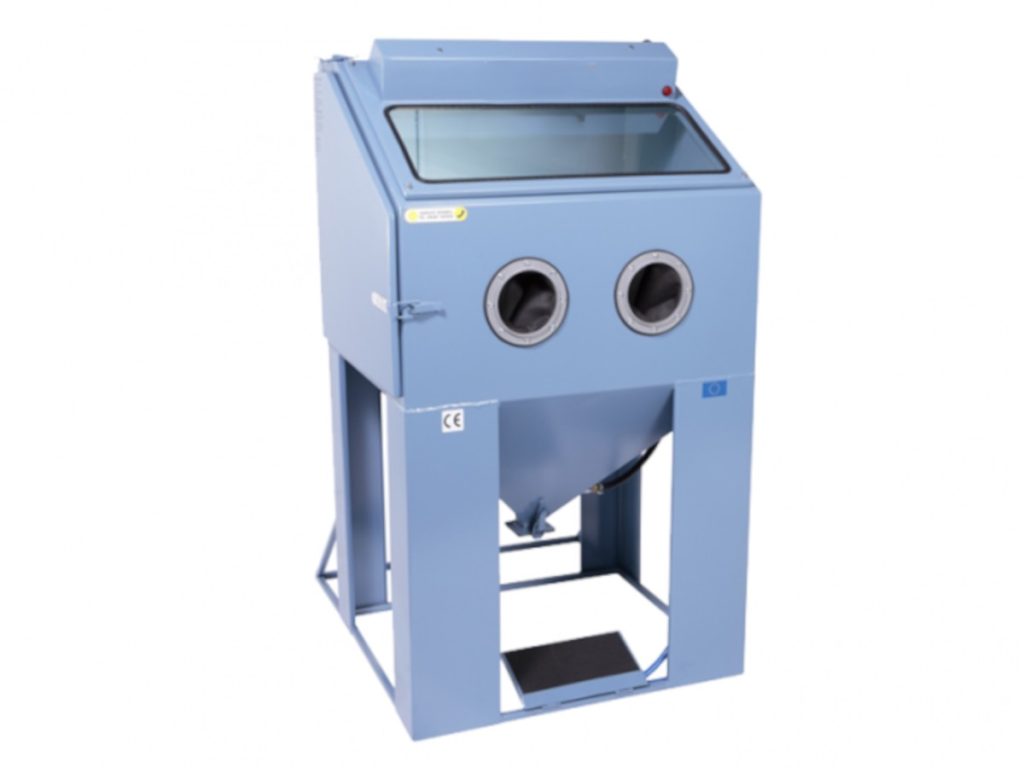

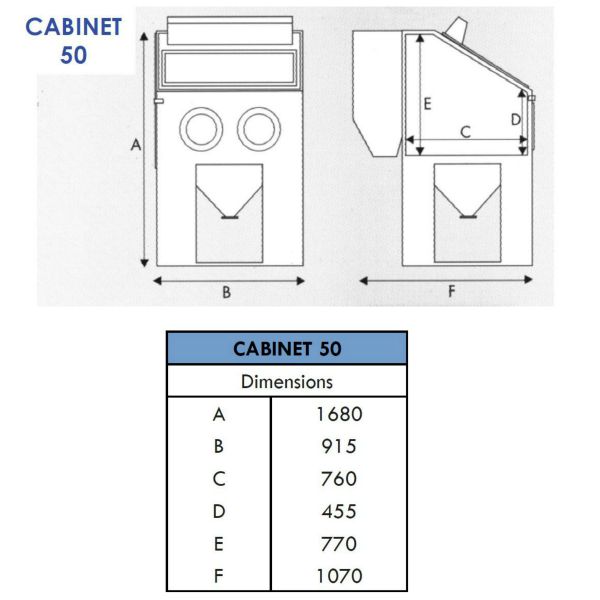

Fox 50 - Advanced Industrial Cabinet
The most advanced model in the Fox range, the Fox 50 delivers high productivity and consistent results.
Featuring foot pedal control, integral dust extraction, and optional turntables for heavy components, it can also be upgraded to a pressure blast system for faster throughput.
Key Features
-
Tungsten carbide nozzle and foot pedal operation
-
Fast media change
-
Integral extraction with multi-pocket filter
-
Powder-coated finish
-
Fluorescent lighting and acetate-protected window
-
Easy pressure conversion (minipot compatible)
-
Large side door for loading
-
Fitted with rubber gauntlets
-
Single-phase 220/240 V supply
Best for: Fabrication shops, casting cleaning, industrial component finishing, and production environments.
Dimensions: H 1680 mm × W 915 mm × D 1070 mm

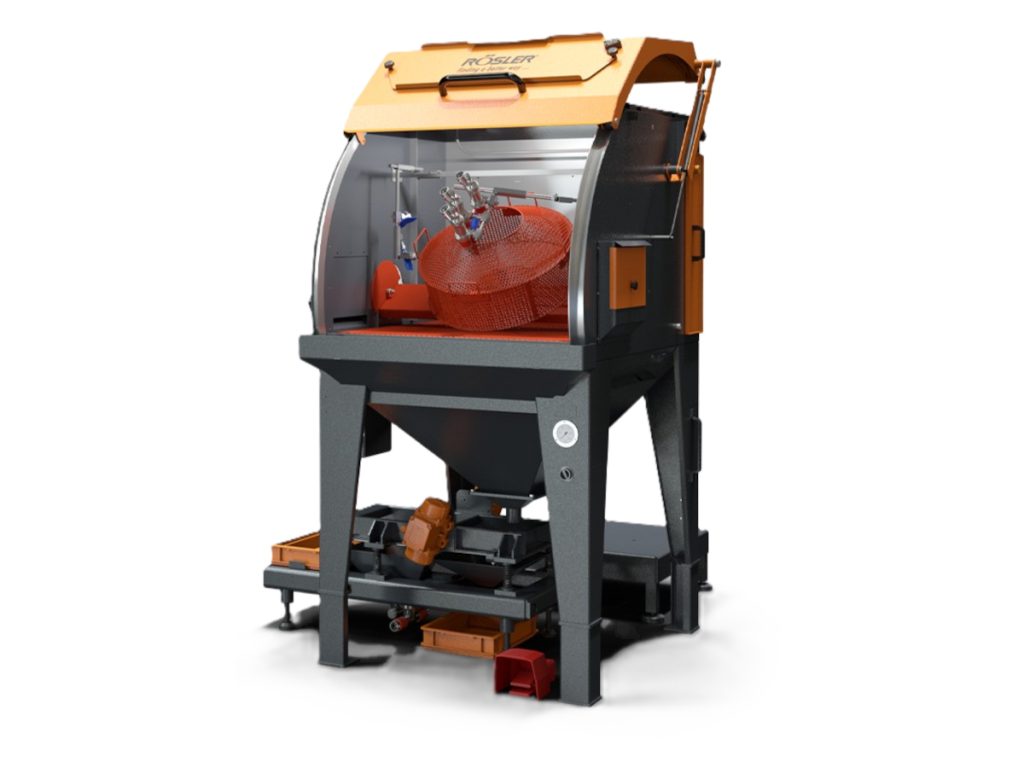

Rosler Blast Cabinets - Automated & High-Performance Systems
For advanced applications and automation, the Rosler RSKI-S range provides modular, high-end blasting systems with rotary baskets, tables, and programmable nozzle motion.
Key Benefits
-
Integrated cartridge dust collector for clean operation
-
Large front roll-up door and wide inspection window
-
Anti-static spray system for consistent results
-
Multi-stage blast media cleaning and recycling
-
Options for rotary table, rotary basket, or rotary satellite table
-
Supports manual and automatic operation with nozzle motion control
-
Available in multiple sizes and configurations
Best for: Batch processing, automated finishing, and precision component cleaning.
Ideal industries: Aerospace, automotive, additive manufacturing, and medical engineering.
| Model | Type | Dimensions (H × W × D mm) | Power Supply | Extraction System | Control Type | Nozzle Type / Size | Lighting & Visibility | Special Features | Accessories / Options | Ideal Applications |
|---|---|---|---|---|---|---|---|---|---|---|
| Fox 10 | Bench-top | 820 × 770 × 540 | Single-phase 220/240 V | Portable dust collector (sold separately) | Hand trigger | Tungsten carbide nozzle | Fluorescent lighting, large acetate-protected viewing window | Powder-coated finish, fast media change, two side doors, media filtration, rubber gauntlets | Spare nozzles, acetate sheets, gauntlets | Hobby use, labs, R&D, small component cleaning |
| Fox 25 | Floor-standing | 1680 × 815 × 915 | Single-phase 220/240 V | Integral high-performance multi-pocket filter | Foot pedal | Tungsten carbide nozzle | Fluorescent lighting, acetate-protected window | Powder-coated finish, fast media change, large side door, turntable option, easy pressure conversion (minipot compatible), rubber gauntlets | Turntable option, pressure conversion kit, spares | Engineering workshops, casting cleanup, corrosion removal |
| Fox 50 | Industrial floor-standing | 1680 × 915 × 1070 | Single-phase 220/240 V | Integral extraction with multi-pocket filter | Foot pedal | Tungsten carbide nozzle (pressure conversion compatible) | Fluorescent lighting, acetate-protected window | Powder-coated finish, large side door, fast media change, turntable option, optional pressure blasting | Turntables, nozzles, spares | Production use, large parts, industrial component finishing |
| Rosler RSKI 1000-S | Automated / Industrial | 710 × 990 × 1000 (blast room) Machine: W 1370 × D 1930 × H 1740 | Configurable (3–6 bar air pressure) | Integrated cartridge dust collector | Control panel (contactor or PLC) | Up to 4 injection blast guns (Ø3–6 mm) | Large angled viewing window, external lighting | Modular design, anti-static spray system, integrated media cleaning, rotary table/basket compatible | Grate, rotary basket, rotary table, nozzle automation | Automated batch processing, small-to-medium components |
| Rosler RSKI 1400-S | Automated / Industrial (large) | 740 × 1390 × 1390 (blast room) Machine: W 1370 × D 2010 × H 1780 | Configurable (3–6 bar air pressure) | Integrated cartridge dust collector | Control panel (contactor or PLC) | Up to 4 injection blast guns (Ø3–6 mm) | Large angled viewing window, external lighting | Modular design, integrated media recycling, optional vibratory screening, anti-static spray | Rotary basket or table, satellite table, nozzle movement automation | Large batch processing, automated precision finishing |
Accessories & Spares
-
Replacement guns and tungsten/silicon/boron carbide nozzles
-
Acetate sheets for viewing window protection
-
Shotblast gauntlets
-
Extraction filters and lighting spares
-
Turntables, rotary baskets, and nozzle automation kits (Rosler systems)
Enquiries
Contact Us
Interested in the Fox 10, 25, or 50, or looking for a Rosler automated blasting system?
Our finishing experts can recommend the right setup for your process.
📞 Call: +44 (0)1722 711988
📧 Email: info@moleroda.com
