RODA Bore Complete Sets are the starting point for customers who need a ready-to-use long-reach abrasive nylon tool for controlled internal deburring, cleaning and surface refinement.

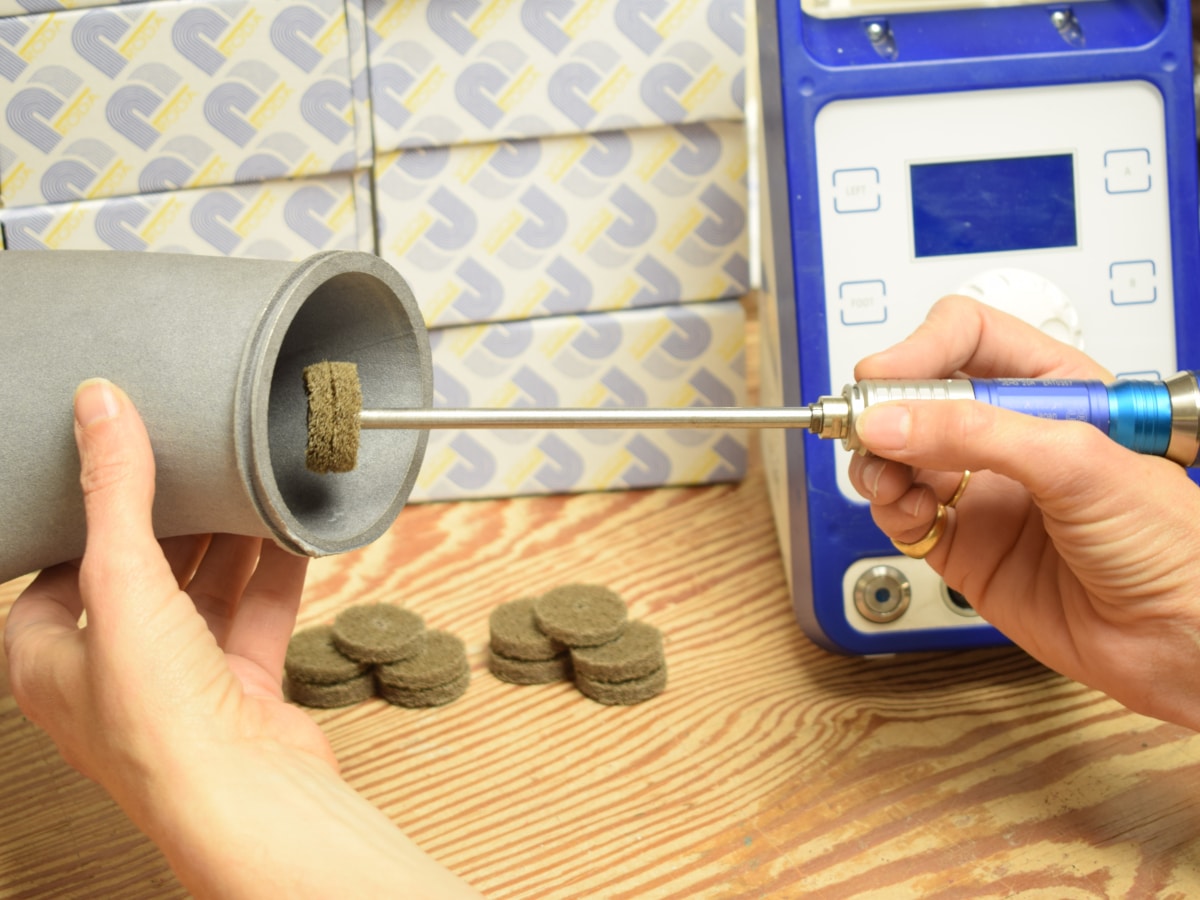

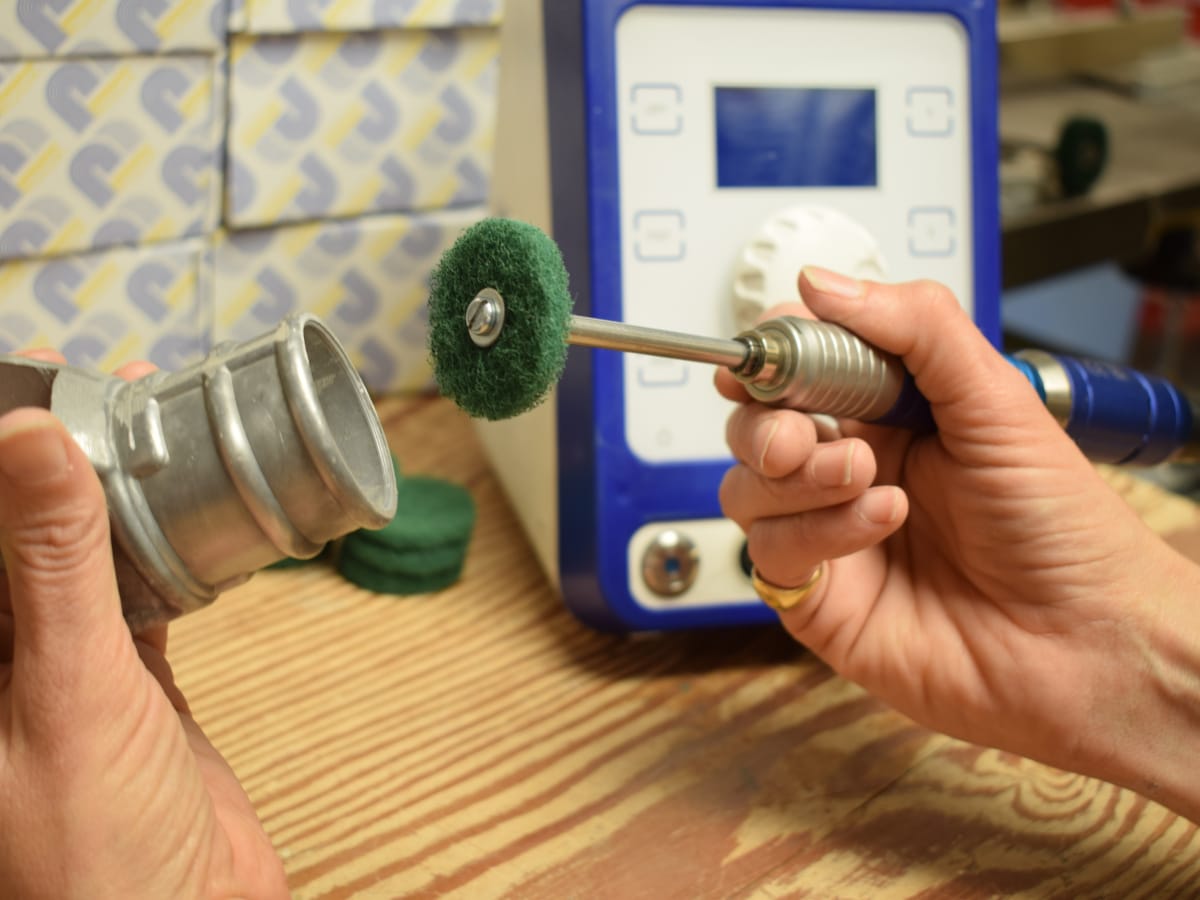

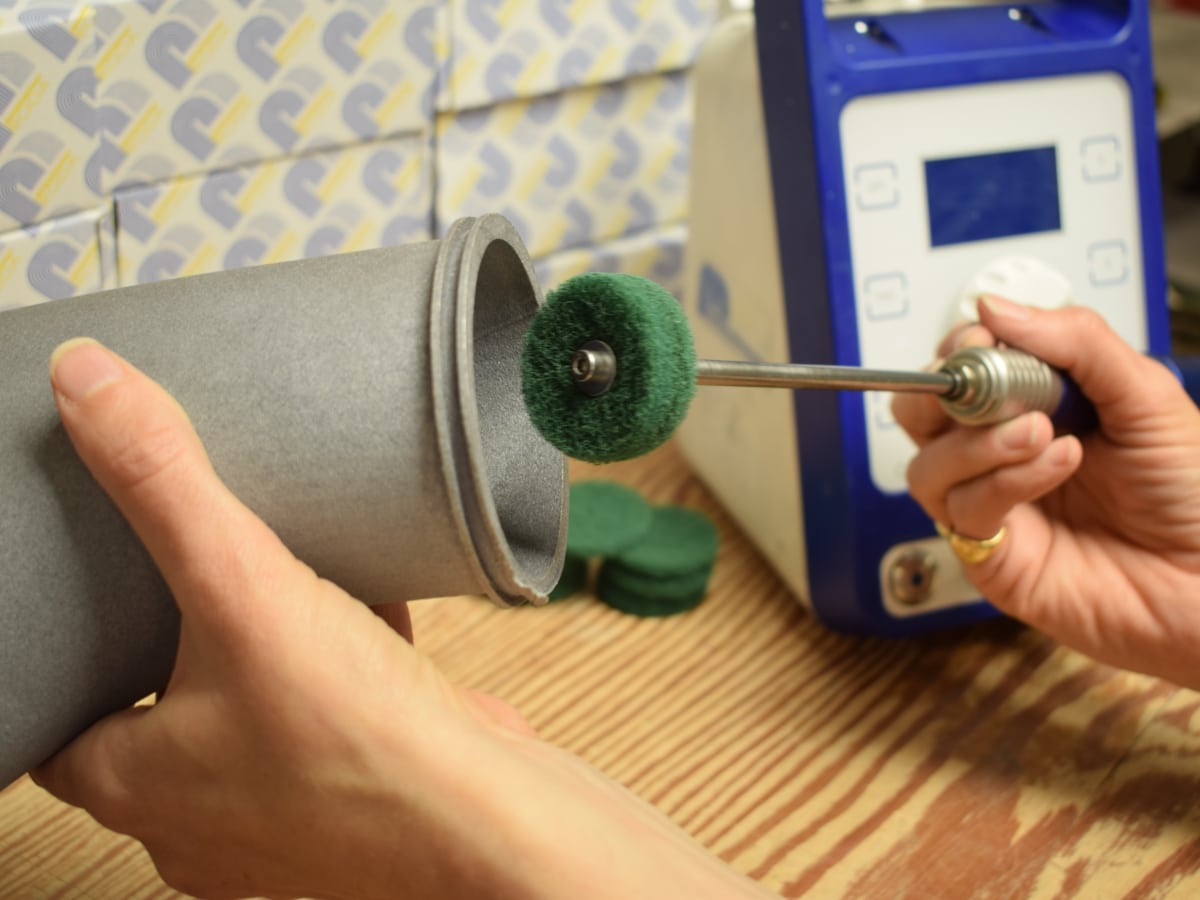

Each set combines a reusable 6mm-shank extended mandrel with abrasive nylon discs, giving access to internal bores, ports, cross-holes, tubes and other difficult-to-reach features where a standard mounted abrasive tool cannot provide sufficient reach.
The flexible abrasive nylon disc construction is designed to support controlled finishing action on suitable components. It can help remove light burrs, refine internal edges and improve surface condition without the harsh cutting action associated with rigid grinding tools.
Already own a RODA Bore mandrel?
You may only need replacement abrasive nylon discs rather than another complete set.

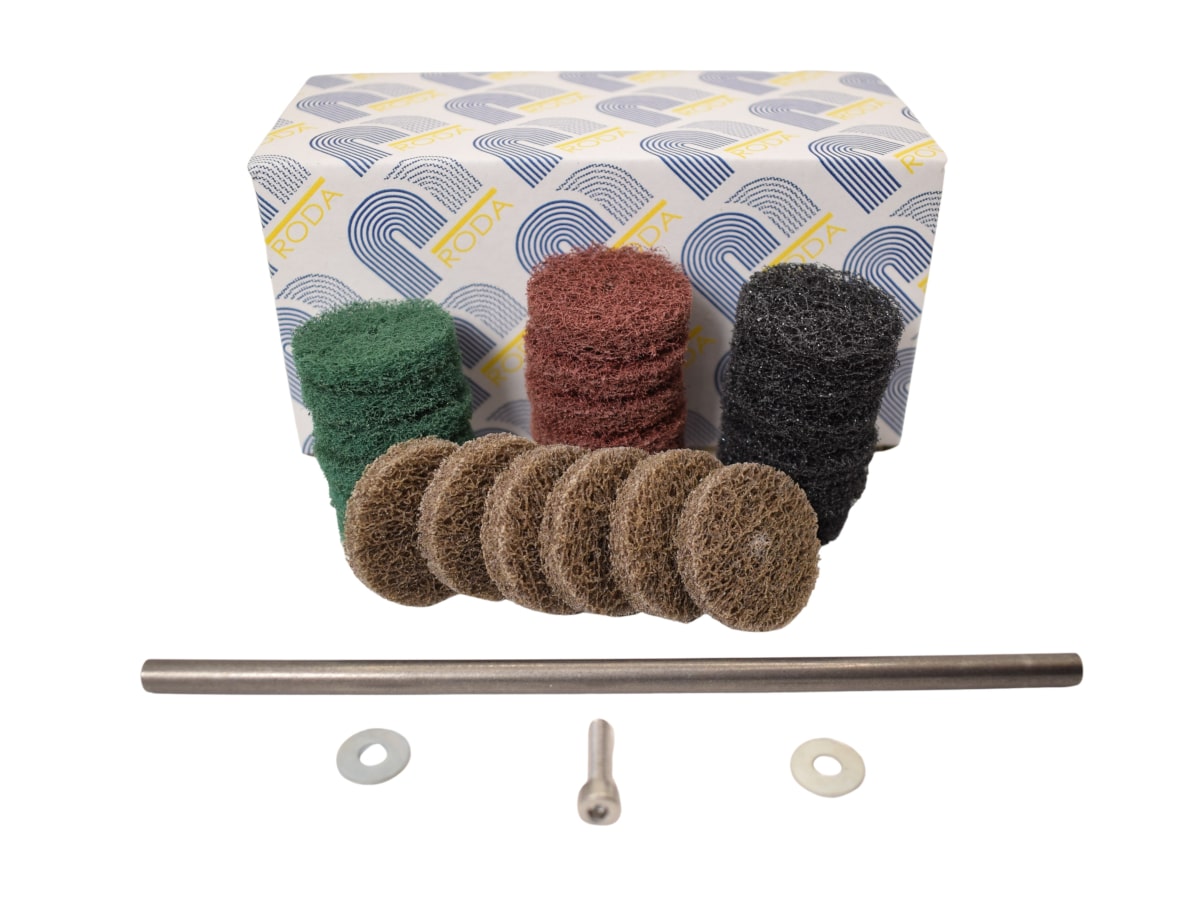

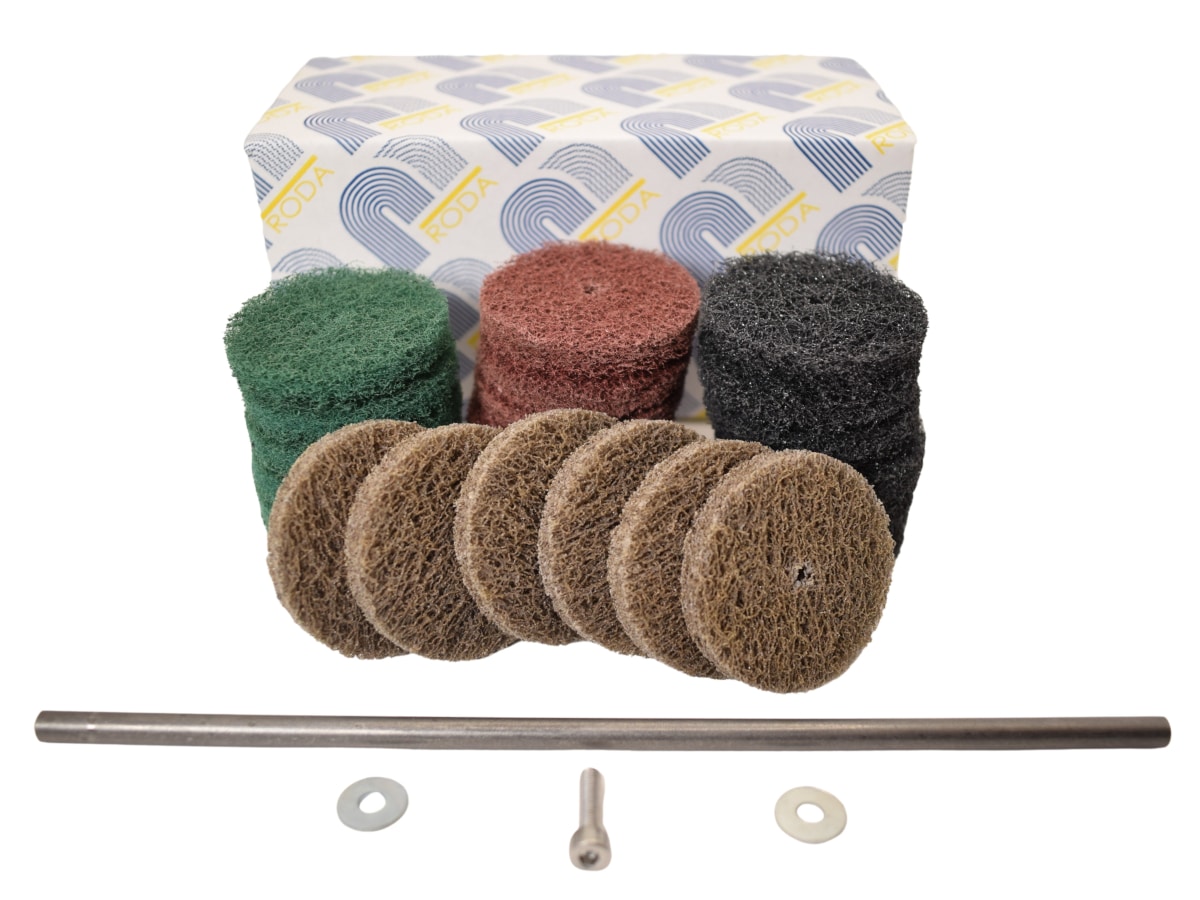

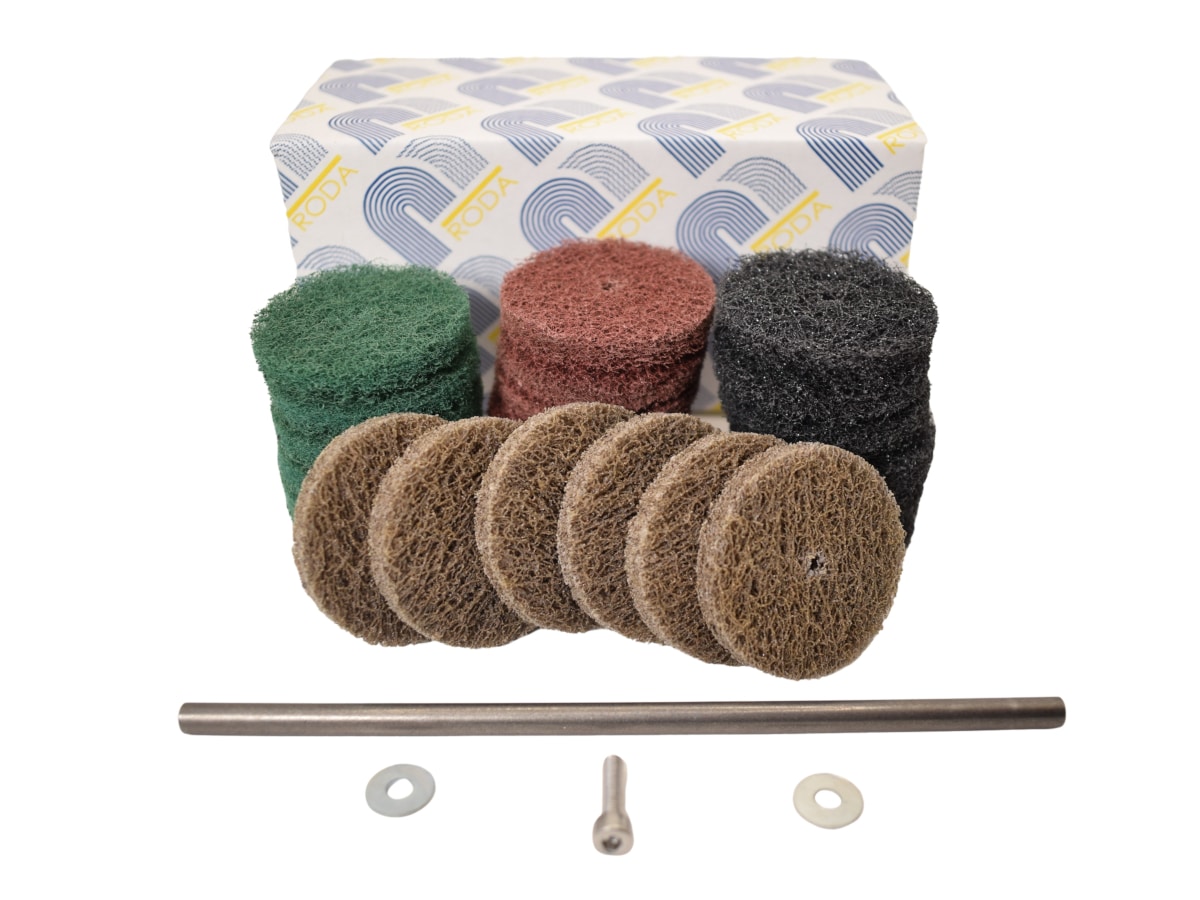

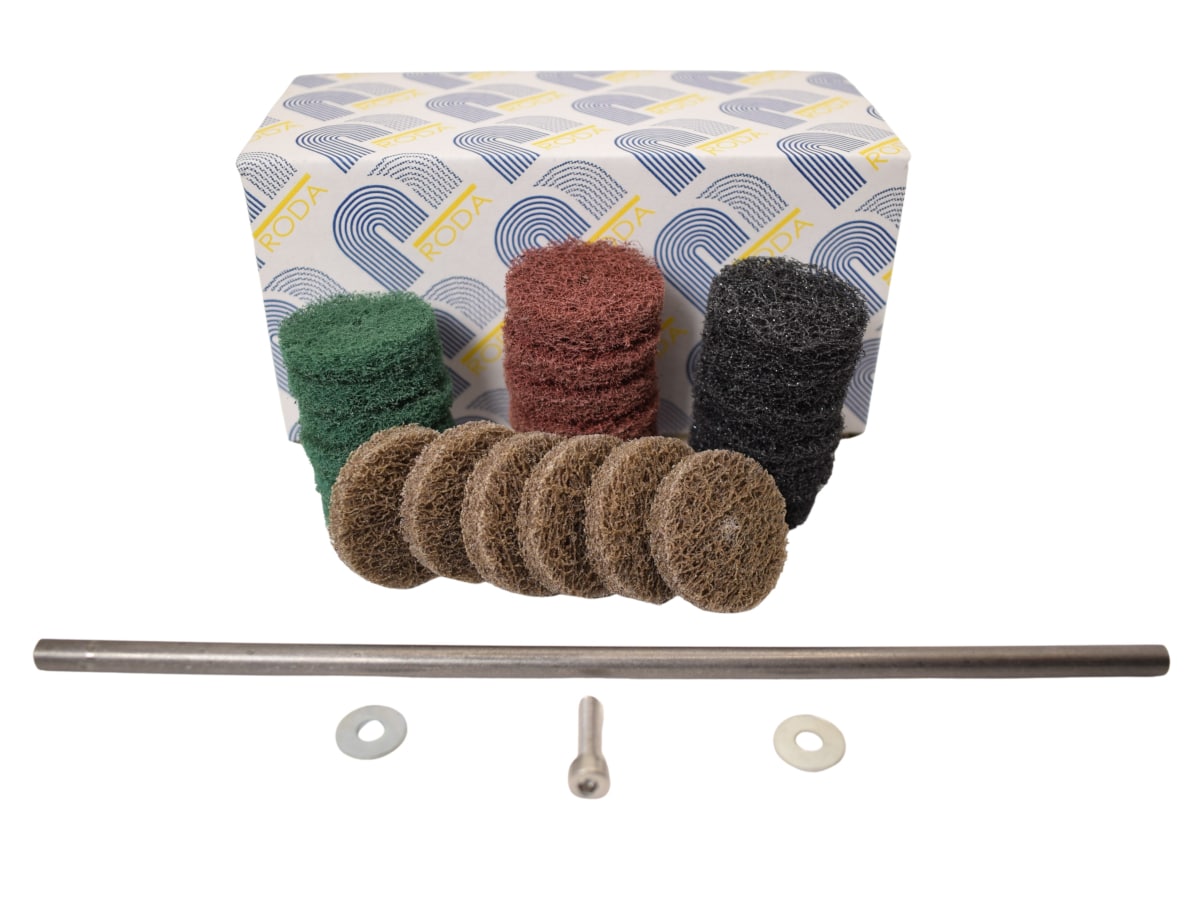

What Is Included in a RODA Bore Complete Set?
Each RODA Bore Complete Set includes the reusable long-reach mandrel and abrasive nylon starter discs needed to begin internal bore, hole, port and cross-hole deburring.
1 x Long-Reach Reusable Mandrel
Each set includes one reusable 6mm-shank extended mandrel. Choose either a 160mm or 200mm mandrel length depending on the depth of access required and the available machine clearance.
160mm or 200mm
Choose 160mm where you need extended reach but prefer a shorter overall tool length.
Choose 200mm where additional length is needed to reach deeper internal features.
24 x Abrasive Nylon Discs
Each set includes 24 abrasive nylon discs, supplied as a standard progression of grades.
6 x Green (Fine)
6 x HDMA (Standard Coarse)
6 x Black (Coarse)
6 x Superior Brown (Ultra-Coarse)
30mm or 40mm
Choose 30mm where a more compact abrasive nylon contact area is needed.
Choose 40mm where the component geometry allows broader contact within the bore or internal feature.
6mm-Shank Machine Compatibility
The mandrel requires a suitable 6mm chuck, collet or suitable machine-holding arrangement. Confirm compatibility before use.
Replaceable Consumable System

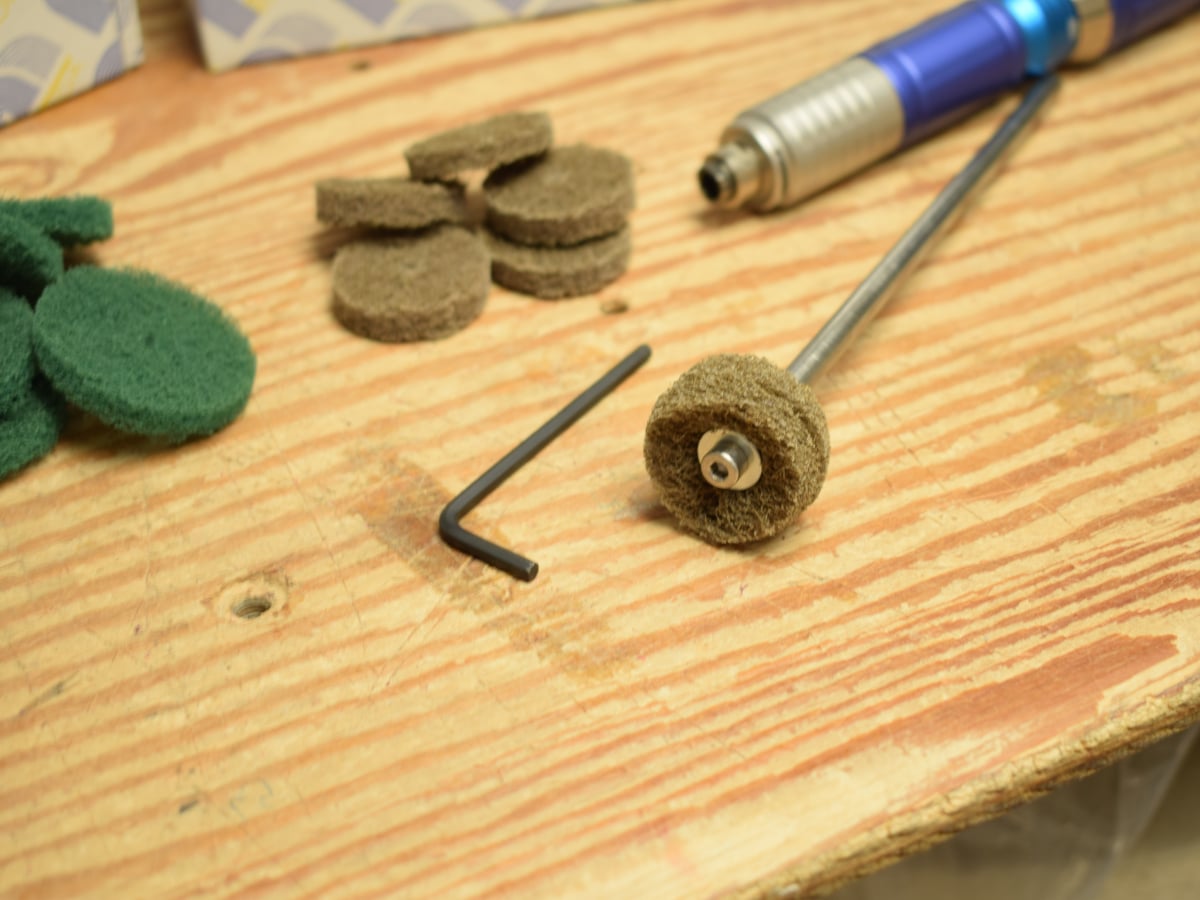

The flexible abrasive nylon discs are secured to the reusable mandrel using a bolt fixing, which can be loosened with a suitable hex key when discs need to be replaced.
Important:
RODA Bore disc diameter is not a stated minimum bore-diameter figure. Effective access depends on the selected disc, bore entry, component geometry, working angle and required contact area.
Why Use RODA Bore for Internal Deburring?
RODA Bore combines the flexible abrasive nylon action of the wider RODA Nylon range with a dedicated extended-reach mandrel system. It is designed for applications where compact abrasive nylon contact is needed deep inside a component.
Long-Reach Access
The 160mm and 200mm mandrel options help reach internal features that are difficult to access with standard mounted wheels or short-shank abrasive tools.
Flexible Abrasive Nylon Contact
The non-woven abrasive nylon discs can conform to internal edges and changing bore geometry more readily than a rigid abrasive tool.
Reusable System
Replace worn abrasive discs while retaining the mandrel, helping to reduce replacement cost and simplify repeat finishing work.
RODA Bore is intended to support controlled internal deburring, cleaning and surface refinement on suitable components. Where tolerances, surface finish or critical geometry are involved, validate the process on representative parts before production use.
Typical RODA Bore Applications
RODA Bore is suited to internal finishing tasks where extended reach and a flexible abrasive nylon contact area are more important than heavy stock removal.
- Light deburring of internal holes, cross-holes and drilled features
- Cleaning and refining ports, cavities and recessed internal surfaces
- Blending light burrs around internal intersections and edges
- Internal surface preparation before a later coating, bonding or assembly stage
- Cleaning internal features on machined, fabricated or moulded components
- Refining suitable hydraulic, pneumatic, automotive, aerospace, medical and precision-engineering components
Always assess the component material, bore access, workholding, tolerance requirements and finishing objective before selecting an abrasive process.
Keep Your RODA Bore System Running
RODA Bore is built around a reusable mandrel and replaceable-disc system. Once the abrasive nylon starter discs become worn, you can keep using the mandrel and replace only the consumable discs in required grades. Additional mandrels are also available separately where you need a spare, replacement or alternative reach length.
Need Replacement Abrasive Discs?
RODA Bore Refill Discs are available separately for existing mandrel owners. Select the required grade, diameter and disc style for your application.
Abrasive Mops & Wheels
RODA Bore Refill Discs – Abrasive Nylon Discs for Hole Deburring
Need a Spare or Different Mandrel Length?
RODA Bore Replacement Mandrels are available separately in 160mm and 200mm lengths for replacement, additional workstations or alternative reach requirements.

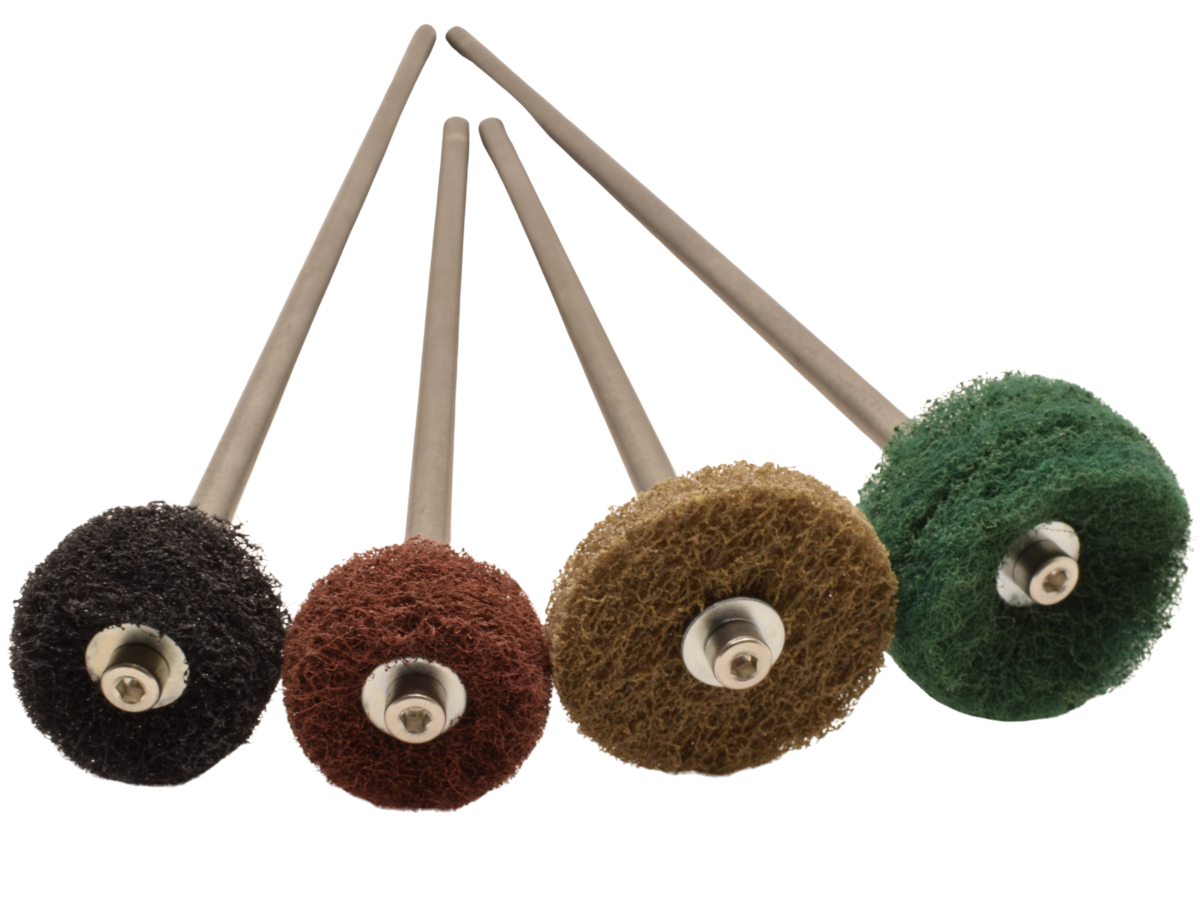

Understanding Abrasive Nylon Grades
RODA Bore Complete Sets include a starter selection of abrasive nylon grades so users can assess the most suitable finishing action on their own component. In general, coarser grades are used for heavier cleaning, more visible burrs and more substantial surface refinement, while finer grades are used for lighter cleaning and a softer finish.
The RODA abrasive nylon grade system is shared across RODA Bore, NyWheels, Large Abrasive Nylon Buffing Balls, NyMops, Hand Pads and Abrasive Nylon Roll. Use the central grade guide for a fuller explanation of colour, grit equivalent, finish type and recommended starting points.
RODA Bore Guides & Internal Deburring Advice
New to RODA Bore or still assessing the best internal deburring process? These guides explain where RODA Bore fits, common bore deburring mistakes to avoid, and how abrasive nylon compares with wire brushes for internal finishing.
Complete Guide to Internal Bore Deburring
Learn where RODA Bore fits, how the system works and how to choose between complete sets, refill discs and replacement mandrels.
Complete Guide to Internal Bore Deburring with RODA Bore
RODA Bore is best suited to internal finishing tasks where extended reach and a flexible [...]
Common Bore Deburring Mistakes
Review common issues such as over-aggressive tooling, poor access planning, incorrect disc selection and skipped process validation.
5 Common Mistakes in Bore Deburring – and How RODA Bore Helps Avoid Them
RODA Bore is well suited to internal finishing tasks where extended reach and flexible abrasive [...]
Abrasive Nylon vs Wire Brushes
Compare abrasive nylon with wire brushes for internal cleaning, light deburring and surface refinement.
Abrasive Nylon vs Wire Brushes: Which Is Better for Internal Bore Finishing?
Wire brushes can be useful for general cleaning, rust removal, scale removal and more aggressive [...]
Start Your RODA Bore System
Choose a RODA Bore Complete Set to begin long-reach internal deburring, cleaning and surface refinement with a reusable abrasive nylon system.
Need help choosing mandrel length or disc diameter?
Contact Moleroda for practical advice on selecting a suitable RODA Bore configuration for your component and process.
