Compare Three Standard TC Disc Sizes in One Assortment
This Dedeco mixed-size radial disc assortment combines 5/8″, 7/8″ and 1″ Sunburst TC standard-profile discs in one kit. It provides a practical way to compare how disc diameter affects access, control, surface coverage and cutting action before committing to larger quantities of a particular format.

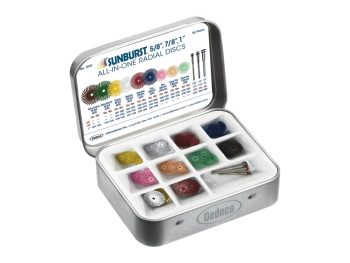

The kit contains 80 loose radial discs across three diameters, together with three screw-top mandrels. Four discs are supplied in each included size and grade combination, allowing the discs to be tested individually or assembled into matching stacks.
The flexible, curved TC (Type C) bristles conform to contours, edges and irregular surfaces. The different sizes extend the working range from controlled detail finishing with 5/8″ discs through to greater surface coverage with the 1″ format, while the included grades determine the level of cutting and surface refinement.
Why Choose the Mixed-Size Assortment?
Compare Three Diameters
Trial 5/8″, 7/8″ and 1″ discs to establish the balance of access, visibility and surface coverage required for different components.
Explore a Broad Grade Range
Compare common finishing grades across the three sizes, with ultra-coarse options for the 1″ discs and micron grades for the 5/8″ and 7/8″ formats.
Develop Flexible Setups
Use discs individually for narrow contact or combine matching discs to evaluate wider and more supported working faces.
Mixed-Size or Single-Size Assortment?
Choose the mixed-size assortment when you want to sample 5/8″, 7/8″ and 1″ standard-profile discs or regularly work across components requiring different levels of access and surface coverage.
Choose a 5/8″ or 7/8″ single-size assortment when you need more discs per grade and want the complete seven-grade selection for one established diameter.
Or choose the 1″ single-size assortment for greater quantities of the larger discs and access to its complete eight-grade range, including the 6-micron and 1-micron grades omitted from this mixed-size kit.
Typical Applications
- Comparing disc diameters before selecting a preferred finishing format
- Developing repeatable cleaning, deburring and polishing sequences
- Finishing components with a mixture of detailed and broader surface features
- Cleaning oxidation, corrosion, contamination and suitable coatings
- Deburring machined, cast and fabricated components
- Blending scratches, machining marks and surface transitions
- Removing investment residue and refining jewellery castings
- Smoothing carved wood and removing raised fibres
- Progressing from initial surface preparation through to fine polishing
Suitable Materials
These discs can be used across suitable precious and non-ferrous metals, steel, stainless steel, cast iron, aluminium, brass and bronze. They are also suitable for selected wood, acrylic, plastic and ceramic applications.
Always test the selected size and grade on an inconspicuous area first, particularly on softer, coated or heat-sensitive materials.
Assortment Contents & Grades
What's Included
- 80 loose radial discs: Four discs in each included size and grade combination
- Three standard-profile diameters: 5/8″, 7/8″ and 1″
- Three screw-top mandrels: Covering the different shank and arbor combinations required by the included discs
- Total pack quantity: 83 pieces
Disc Contents by Size
| Disc Size | Disc Quantity | Included Grades | Centre Hole |
|---|---|---|---|
| 5/8″ (16mm) |
28 Four per grade |
80, 120, 220, 400 and 600 grit; 6 micron and 1 micron | 1.6mm (1/16″) |
| 7/8″ (22mm) |
28 Four per grade |
80, 120, 220, 400 and 600 grit; 6 micron and 1 micron | 1.6mm (1/16″) |
| 1″ (25mm) |
24 Four per grade |
36, 50, 80, 120, 220 and 400 grit | 1/8″ |
| Total | 80 discs | Across all included size and grade combinations | |
Please note:
The 6-micron and 1-micron grades are supplied in the 5/8″ and 7/8″ formats but are not included in the 1″ selection. The 1″ discs instead add ultra-coarse 36 and 50 grit options.
Grade Guide
Grade availability varies by diameter. Begin with the finest grade capable of producing the required result.
| Colour | Grade | Quantity | Typical Use |
|---|---|---|---|
| Brown (Ultra-Coarse) |
36 Grit (Aluminium Oxide) |
4 x 1″ discs | Aggressive stripping, heavy corrosion removal and initial surface correction |
| Dark Green (Extra-Coarse) |
50 Grit (Aluminium Oxide) |
4 x 1″ discs | Heavy deburring, weld clean-up and rapid surface preparation |
| Yellow (Coarse) |
80 Grit (Aluminium Oxide) |
4 x each size (12 discs) |
Heavy cleaning, oxide removal and coarse blending |
| White (Medium) |
120 Grit (Aluminium Oxide) |
4 x each size (12 discs) |
Light deburring, smoothing and controlled blending |
| Red (Standard) |
220 Grit (Aluminium Oxide) |
4 x each size (12 discs) |
Surface blending, scratch refinement and preparation for finer finishing |
| Blue (Fine) |
400 Grit (Aluminium Oxide) |
4 x each size (12 discs) |
Fine finishing, satin finishing and surface smoothing |
| Pink (Pumice) |
600 Grit (Pumice) |
4 x 5/8″ + 4 x 7/8″ (8 discs) |
Pre-polishing and preparation for micron finishing |
| Peach (Extra-Fine) |
6 Micron (Aluminium Oxide) |
4 x 5/8″ + 4 x 7/8″ (8 discs) |
Fine polishing and development of an initial lustre |
| Light Green (Ultra-Fine) |
1 Micron (Aluminium Oxide) |
4 x 5/8″ + 4 x 7/8″ (8 discs) |
Final high-lustre and highly refined finishing |
Choose the Correct Mandrel
The assortment includes three screw-top mandrels, with dimensions stated as shank x arbor:
- 1/8″ x 1.6mm (1/16″): For the 5/8″ and 7/8″ discs
- 2.35mm (3/32″) x 1.6mm (1/16″): For the 5/8″ and 7/8″ discs
- 1/8″ x 1/8″: For the 1″ discs
Select the mandrel whose shank exactly matches the machine, handpiece, chuck or collet being used.
Adjust the Working Width
Use one loose disc for the narrowest and most flexible contact or combine matching discs to create a wider and more supported finishing head.
- Only stack discs of the same diameter, profile and grade
- Align every disc in the same direction of rotation
- Ensure the mandrel screw remains fully and securely engaged
- Do not mix different grades within the same working stack
Operating & Safety Guidance
- Recommended operating range: 3,000–18,000 RPM
- Woodworking reference speed: Approximately 5,000 RPM
- Never exceed the lowest maximum speed stated for the disc, mandrel or machine
- Confirm that the selected mandrel shank and arbor suit both the tool and disc
- Install every disc so the tail of each curved bristle follows the direction of rotation
- Use the bristle tips with light pressure rather than forcing the discs into the workpiece
- Keep the tool moving to control localised heat and uneven wear
- Check that the screw-top mandrel is secure before starting the machine
- Use suitable machine guarding and appropriate personal protective equipment
Product Specifications
| Product range | Dedeco Sunburst |
|---|---|
| Included diameters | 5/8″ (16mm), 7/8″ (22mm) and 1″ (25mm) |
| Disc profile | Standard-profile TC curved and conformable (Type C) |
| Bristle characteristics | Flexible and single-directional |
| Centre holes | 1.6mm (1/16″) for the 5/8″ and 7/8″ discs; 1/8″ for the 1″ discs |
| Abrasive grain | Aluminium oxide; pink 600-grit discs use pumice |
| Supply format | Mixed-size loose-disc assortment kit |
| Total disc quantity | 80 |
| 5/8″ disc quantity | 28 – four discs in each of seven grades |
| 7/8″ disc quantity | 28 – four discs in each of seven grades |
| 1″ disc quantity | 24 – four discs in each of six grades |
| Included mandrels | Three screw-top mandrels |
| Mandrel dimensions | 1/8″ x 1/16″, 3/32″ x 1/16″ and 1/8″ x 1/8″ shank x arbor |
| Total pack size | 83 pieces |
| Recommended operating range | 3,000–18,000 RPM |
| Woodworking reference speed | Approximately 5,000 RPM |
| Suitable equipment | Compatible rotary tools, flexible shaft machines, micromotors, handpieces and pencil grinders |
| Polishing compound required | No |
