Stationary Production Mounting for Medium Radial Disc Systems
The radial disc screw adapter is designed for users operating loose medium radial disc systems on bench-mounted polishing motors, lathes and tapered spindle machines.
By mounting radial discs onto a fixed spindle system, operators gain improved stability, reduced vibration and better control during repetitive finishing operations.
This setup is particularly effective for weld cleanup, oxide removal, surface conditioning and production finishing where handheld tooling becomes inefficient or fatiguing.
Why Use Tapered Spindle Mounting?
Stationary Stability
Fixed spindle mounting reduces vibration and improves consistency during repetitive finishing work.
Two-Handed Workpiece Control
The abrasive remains fixed in place, allowing operators to guide the component using both hands for improved control and surface contact.
Ideal for Production Work
Well suited to repetitive deburring, blending, weld cleanup and surface conditioning in fabrication, engineering and polishing shop environments.
Compatible Loose Disc Systems
These adapters are intended for loose radial discs with approximate 9.5mm centre holes.
They are not designed for pre-assembled radial disc wheels or mounted 3-ply / 6-ply units.
Dedeco Sunburst Loose Discs
- Dedeco Sunburst TC 2″ radial discs
- Dedeco Sunburst TC 3″ radial discs
- Dedeco Sunburst TA 3″ radial discs
3M Scotch-Brite Loose Discs
- 3M Scotch-Brite 50mm radial bristle discs
- 3M Scotch-Brite 75mm radial bristle discs
Important Compatibility Warning
Do not use this adapter with pre-assembled radial disc units.
Pre-assembled 3-ply and 6-ply radial wheels use an integrated centre system and are not designed to be mounted on this loose-disc screw adapter.
If you prefer a ready-to-run setup without manually configuring loose disc stacks, explore:
- Dedeco Sunburst TC 3″ x 3-ply assemblies
- Dedeco Sunburst TC 3″ x 6-ply assemblies
The Production Advantage
Tapered spindle adapters are ideal when the finishing operation is repeated across multiple parts or when the workpiece is easier to control by hand than with a handheld rotary tool.
Consistent Disc Positioning
The fixed machine setup helps maintain a consistent working angle and contact point throughout the finishing process.
Reduced Operator Fatigue
Instead of holding a drill or die grinder, the operator brings the component to the abrasive, improving comfort during longer production runs.
Efficient Medium Disc Stacking

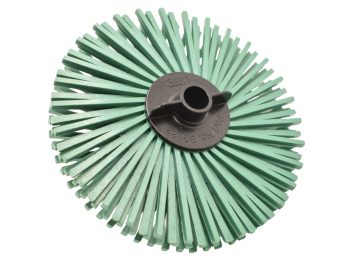

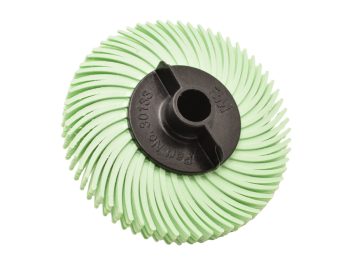

Loose 50mm and 75mm radial discs can be stacked to create a wider abrasive face for blending, cleaning and surface conditioning.
Typical Applications
Commercial & High-Volume Fabrication
- Weld cleanup and heat tint removal
- Oxide removal and surface conditioning
- Repetitive deburring of fabricated components
Polishing Shop & Lathe Workflows
- Bench-mounted surface blending
- Controlled satin finishing
- Cleaning and refining shaped metal components
Engineering & Maintenance
- Cleaning machined parts
- Removing contamination from metal surfaces
- Preparing components for secondary finishing
Mounting & Installation
Mounting Method: Internal threaded adapter for tapered spindle / polishing lathe pigtail mounting.
Disc Mounting: Loose discs are loaded onto the adapter arbor and secured with the front clamping screw.
Compatible Machinery
- Bench polishing motors
- Polishing lathes
- Tapered spindle machines
- Fixed finishing stations
Important Installation Notes
- Choose the correct adapter for your spindle direction/thread
- Ensure discs are seated flat before tightening
- Use only loose discs with compatible centre holes
- Do not use with pre-assembled mounted radial wheels
Compare Medium Mounting Systems
| System | Best For | Mounting Style |
|---|---|---|
| Tapered Spindle Adapter | Bench-mounted production finishing and continuous operation | Internal thread for tapered spindle / polishing lathe mounting |
| MM506 Screw Nut Mandrel | Portable finishing with drills, die grinders and flexible setups | 6mm shank for direct chuck mounting |
Choose the tapered spindle adapter for stationary production workflows and maximum bench-mounted stability.
Choose the MM506 mandrel for portable industrial finishing using drills, die grinders or other 6mm chuck systems.
Operating Guidelines
Setup
- Secure the adapter firmly onto the tapered spindle before mounting discs
- Fit only compatible loose discs with the correct centre hole size
- Ensure stacked discs are centred and tightened evenly with the retaining washer
- Check that the assembly runs true before applying it to the workpiece
Technique
- Bring the workpiece to the abrasive using controlled pressure
- Allow the radial bristles to perform the cutting action
- Avoid excessive force, side loading or unsupported workpiece positioning
- Progress through suitable grades where a refined finish is required
Build Your Medium Radial System
Loose Medium Radial Discs
Choose loose 50mm and 75mm radial discs for stacking on tapered spindle adapters and MM506 mandrels.
Portable Mounting Alternative
Use the MM506 mandrel when you need a 6mm shank system for drills, die grinders or handheld rotary tools.
Mandrels for Radial Discs
MM506 Large Screw Nut Mandrel (6mm Shank) – For 2″ & 3″ Discs & Wheels
Bench Finishing Equipment
Pair with bench polishing motors or tapered spindle machines for production-scale radial disc finishing.
